Electrical Contacts: The Heart of Reliable Electrical Connectivity

Electrical contacts are fundamental components in electrical and electronic systems, acting as the bridge that facilitates current flow between conductive parts. From switches and relays to circuit breakers and connectors, electrical contacts are essential for ensuring consistent, reliable, and safe operation of countless devices and systems.

In this blog, we’ll explore the types, materials, applications, and maintenance of electrical contacts, as well as their critical role in modern technology.

What are Electrical Contacts?

Electrical contacts are conductive components that come into physical touch to close or open an electrical circuit. They are designed to allow the flow of electric current with minimal resistance and energy loss. Electrical contacts can be found in:

- Switches: Toggle switches, push buttons, etc.

- Relays: Electromechanical devices used in control circuits.

- Circuit Breakers: Protect circuits by interrupting the current in overload or short-circuit conditions.

- Connectors: Facilitate detachable connections between devices.

Types of Electrical Contacts

1. Fixed Contacts:

  - Remain stationary and interact with movable contacts.

  - Found in switches, relays, and circuit breakers.

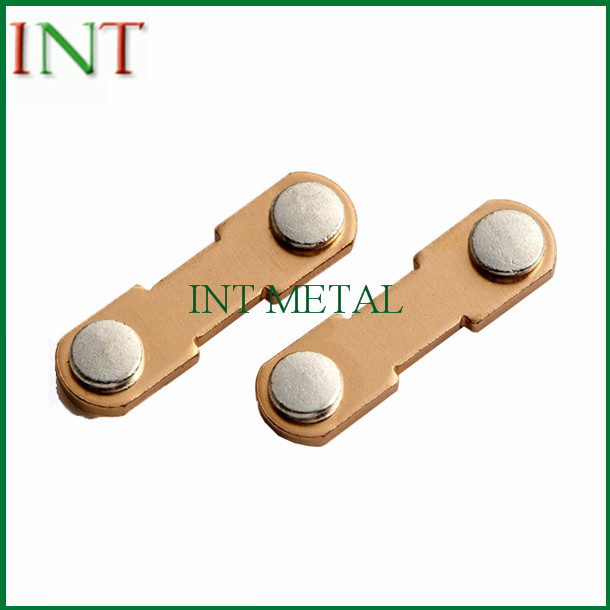

2. Movable Contacts:

  - Move to make or break a connection with a fixed contact.

  - Key to dynamic components like relays and switches.

3. Make Contacts (Normally Open, NO):

  - Establish a circuit when actuated.

4. Break Contacts (Normally Closed, NC):

  - Interrupt a circuit when actuated.

5. Transfer Contacts:

  - Alternate connection between two different circuits.

Materials Used in Electrical Contacts

The material of an electrical contact significantly impacts its performance, durability, and reliability. Common materials include:

1. Silver:

  - Excellent conductor with low resistance.

  - Common in high-current applications.

2. Gold:

  - Resistant to oxidation and corrosion.

  - Ideal for low-current, high-precision applications.

3. Copper:

  - High conductivity but prone to oxidation.

  - Often used with protective coatings.

4. Platinum:

  - High resistance to corrosion and wear.

  - Used in harsh environments.

5. Alloys:

  - Tungsten alloys for arc resistance.

  - Silver-tin or silver-cadmium oxide for improved durability.

Applications of Electrical Contacts

1. Automotive Industry:

  - Used in ignition systems, relays, and connectors.

  - Ensure smooth operation of lights, sensors, and control systems.

2. Power Systems:

  - Essential in circuit breakers, switches, and transformers.

  - Manage high-voltage and high-current operations.

3. Electronics:

  - Found in connectors, sensors, and PCBs.

  - Enable reliable data and power transmission.

4. Industrial Automation:

  - Integral to robotic arms, conveyor systems, and machine controls.

  - Ensure precise and repeatable electrical connections.

Challenges in Electrical Contacts

1. Corrosion:

  - Exposure to moisture and chemicals can degrade contact surfaces, increasing resistance.

2. Wear and Tear:

  - Frequent actuation can lead to material erosion.

3. Arcing:

  - High-current interruptions can cause electric arcs, damaging the contacts.

4. Oxidation:

  - Non-precious metals may develop an oxide layer, reducing conductivity.

Maintenance Tips for Electrical Contacts

1. Regular Inspection:

  - Check for signs of corrosion, wear, or pitting.

2. Cleaning:

  - Use appropriate cleaning agents to remove dirt, grease, or oxidation.

3. Lubrication:

  - Apply conductive grease to reduce wear and protect against corrosion.

4. Replacement:

  - Replace heavily worn or damaged contacts to maintain system reliability.

Advances in Electrical Contact Technology

Modern innovations have led to the development of:

1. Self-Cleaning Contacts:

  - Designed to remove oxidation during operation through wiping action.

2. Smart Contacts:

  - Integrated sensors to monitor contact performance and predict failures.

3. Advanced Coatings:

  - Nano-coatings for enhanced resistance to wear and corrosion.

4. Miniaturization:

  - Smaller contacts for compact electronic devices without sacrificing reliability.

Conclusion

Electrical contacts may be small, but they play a crucial role in the functionality of electrical systems. Choosing the right material, ensuring proper maintenance, and staying updated on technological advancements are essential for optimizing their performance and extending their lifespan.

Whether in industrial machinery, household appliances, or cutting-edge electronics, electrical contacts are truly the unsung heroes of modern connectivity.

Have questions about selecting or maintaining electrical contacts? Share your thoughts in the comments below!
