How Does Hot Runner Valve Needle Work?

In the world of injection molding, precision and efficiency are critical. One of the key components that ensure high-quality output is the Hot Runner Valve Needle. At our factory, we specialize in manufacturing top-tier Hot Runner Valve Needles designed for durability and performance. But how does this essential component actually function? Let’s explore.

A Hot Runner Valve Needle is used in valve-gated hot runner systems to control the flow of molten plastic into the mold cavity. The needle moves forward and backward via pneumatic or hydraulic actuation, opening and closing the gate precisely. This action prevents drooling and stringing, resulting in clean, consistent parts with minimal waste.

Key Components and Mechanism

The mechanism involves several integrated parts:

1. Actuator: Powers the needle’s movement.

2. Needle Tip: Made from high-grade materials to withstand heat and wear.

3. Heater Bands: Maintain optimal temperature to keep plastic molten.

4. Guide System: Ensures straight and consistent needle motion.

When the actuator pushes the needle forward, it seals the gate, stopping material flow. Retracting the needle opens the gate, allowing plastic to fill the cavity. This precise control enables better part quality and reduces cycle times.

Product Parameters

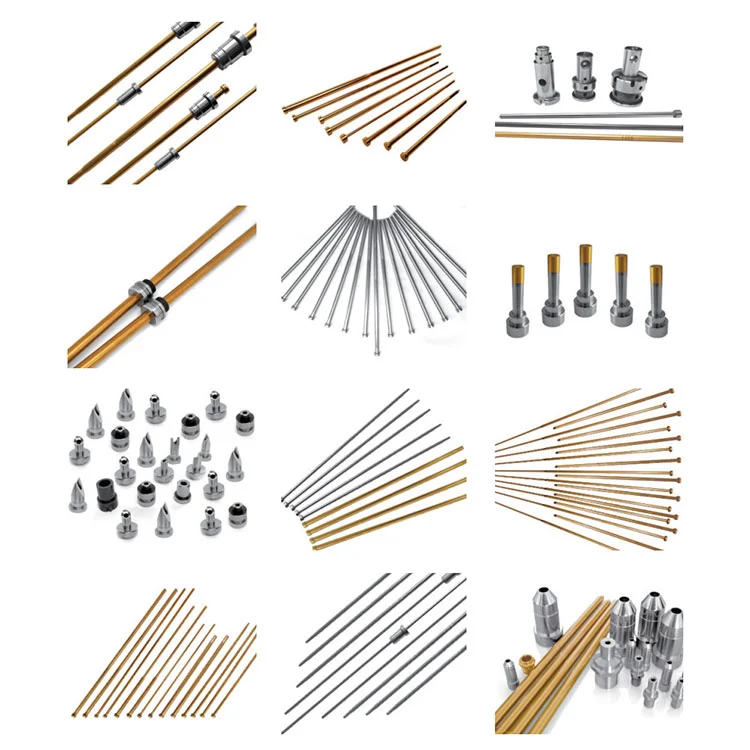

Our Wu Hai Hot Runner Valve Needles are engineered for excellence. Below are the standard specifications:

We also offer custom designs to meet specific project requirements. Our products undergo rigorous quality checks to ensure they perform under high-pressure conditions and extended use.

Benefits of Using Our Hot Runner Valve Needle

Implementing our Hot Runner Valve Needle provides multiple advantages:

1. Improved part quality with minimal gate vestige.

2. Reduced material waste and lower operational costs.

3. Enhanced precision for complex geometries.

4. Longer service life due to superior material and heat treatment.

Our factory uses advanced machining technology to ensure each needle meets international standards. With Wu Hai, you get reliability and performance built into every component.

Frequently Asked Questions

Q1: How does a Hot Runner Valve Needle improve injection molding quality?
The needle offers precise control over the injection process. By cleanly sealing the gate after each cycle, it prevents material leakage and ensures that each shot is consistent. This reduces defects like streaks or uneven fills and is essential for high-precision manufacturing.

Q2: How does the actuation system of a Hot Runner Valve Needle work?
The actuation system can be pneumatic or hydraulic. It provides the force needed to move the needle forward and backward. Pneumatic systems use compressed air and are faster, while hydraulic systems use fluid pressure for higher force in demanding applications. Both ensure reliable and repeatable needle movement.

Why Choose Our Products

We take pride in our engineering expertise and attention to detail. Our Hot Runner Valve Needle is designed for manufacturers who demand accuracy and efficiency. With Wu Hai, you partner with a team dedicated to innovation and quality. For more information or to request a quote, contact Jiangsu Wu Hai Precision Machinery Manufacturing Co.,Ltd. today. Let us help you optimize your production process with our precision components.
