What is LV and MV switchgear?

LV (Low Voltage) switchgear and MV (Medium Voltage) switchgear are electrical devices designed to protect, control, and isolate electrical circuits in low and medium voltage power distribution systems. They serve essential functions in safely managing electrical energy distribution within industrial, commercial, and utility networks. Here’s an explanation of each:

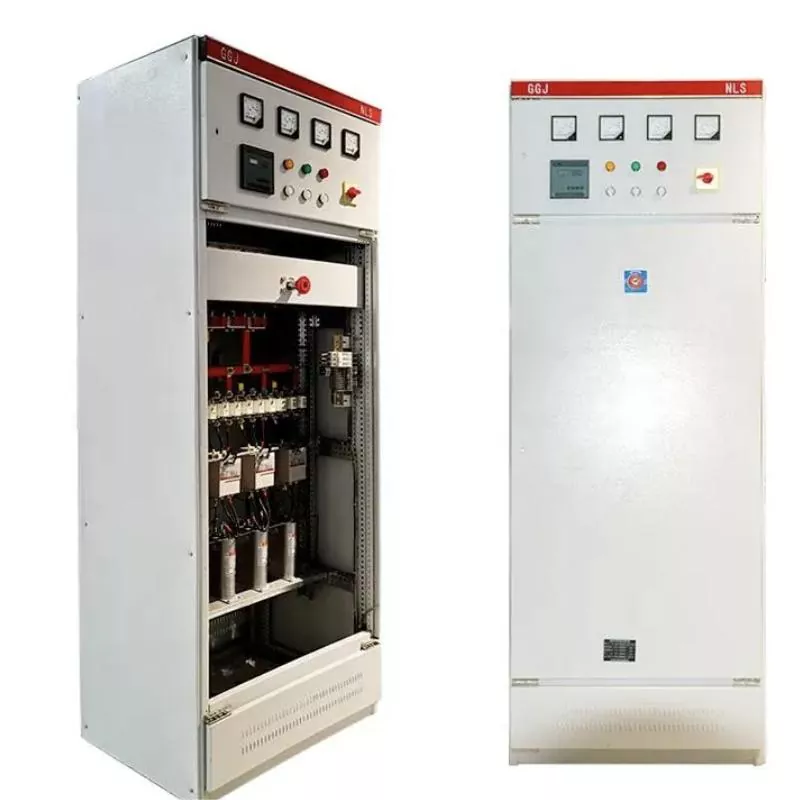

1. LV (Low Voltage) Switchgear:

  - Voltage Range: Typically up to 1 kV (1,000 volts).

  - Function: LV switchgear is used in low voltage electrical systems for the protection, control, and isolation of electrical circuits.

  - Components: It includes circuit breakers, fuses, relays, and contactors. These components protect electrical equipment from faults like overloads, short circuits, and ground faults.

  - Applications: Common in residential, commercial, and small industrial applications where electrical distribution involves relatively low voltages, such as in buildings, data centers, or smaller manufacturing facilities.

2. MV (Medium Voltage) Switchgear:

  - Voltage Range: Typically between 1 kV to 36 kV.

  - Function: MV switchgear is used in medium voltage electrical systems to control, protect, and isolate electrical circuits and equipment.

  - Components: It consists of circuit breakers, disconnectors, earthing switches, current and voltage transformers, and protective relays. These components ensure safe operation and protection of electrical systems from faults, similar to LV switchgear, but at higher voltage levels.

  - Applications: Used in larger industrial facilities, utility power distribution networks, and large commercial infrastructures where medium voltage distribution is necessary. It is also common in substations that step down high voltage (HV) power for local distribution.

Key Differences:

- Voltage Levels: LV switchgear is designed for low voltage systems (up to 1 kV), while MV switchgear handles higher voltages (1 kV to 36 kV).

- Size and Complexity: MV switchgear is larger, more complex, and often incorporates more advanced insulation and safety mechanisms due to the higher voltages involved.

- Application Areas: LV switchgear is typically used in homes and small businesses, while MV switchgear is found in larger industrial plants, substations, and power distribution networks.

In summary, both LV and MV switchgear are essential for protecting electrical systems, but they serve different voltage ranges and applications.
